Standard Features

When a boom gets this large, a 4-Section is not an option. Our 56 Meter 5 Section provides the articulation you need to reach those top floors on high-rise construction projects, and gives you maximum versatility when pouring floors and large slabs.

Hydraulic System with Manual Overrides
Our pumps feature an adaptive hydraulic system, giving you the confidence to get the job done, even in emergency situations. In the event of an electrical malfunction, the entire system can continue to pump in a manual mode.

Split Panel Electrical System
The electrical system is extremely user friendly. The smaller switch panel at the rear of the pump minimizes clutter and eliminates long wiring looms that deteriorate with time.

Optioned to Suit Your Needs
We have every option available to accommodate your specific needs. From different lighting kits and splash guards to custom paint, graphics and design, we will ensure your concrete pump is outfitted for the kinds of work you do.

View More Standard Features

S-Valve Manifold
Directs oil flow to either shift cylinder. Accumulator pressure is also utilized to control the main pump controllers. All electrical functions have manual over-rides.

Main Pump Cell Manifold
Directs oil to the pumping cylinders. All electrical functions have manual over-rides. The main pumping system is an open loop circuit, which reduces heat in the hydraulic system.

Boom Control Valve
The Hawe Controller Valve operates the boom functions and supplies oil for the outrigger circuit. This valve is fully proportional.

Main Pump
This is the main pump which delivers oil for the pumping cylinders. Accumulator pump, boom pump and accessory pumps are all Roxroth.

Hydraulic Oil Cooler
The fan is operated by a hydraulic motor for efficiency and maximum cooling and is controlled by a temperature sensor, with a manual over-ride.

Radio Remote Controls
Our standard package is equipped with Omnex Radio Controls, including two transmitters. The transmitter can also be utilized as a hard wire controller. The data cable plugs directly into the transmitter and into the receiver making the transmitter a proportional hard wire box. With the hard wire plugged into the transmitter, the battery is not necessary.

Hawe Load Holding Valve
Industry standard on boom cylinders to hold the boom in position.

Boom, Outriggers and Turret
Structures are all made of Oxelosund-Weldox structural steel.

Split Panel
Common relays are utilized along with ATO fuses. The smaller switch panel at the rear of the pump minimizes clutter and eliminates long wiring looms that deteriorate with time.

EasyClean 600L Hopper
Carbide Tungsten wear parts and 60mm agitator shafts.

Hopper Vibrator
Standard on all Boom Pumps and Truck-Mounted Line Pumps, our Hopper Vibrator helps you tackle those harsh mixes.

Hopper Auto Lube
Moving parts in the hopper assembly are lubricated by a Lincoln Auto Lube system.

Hide Standard Features

Alliance Concrete Pumps

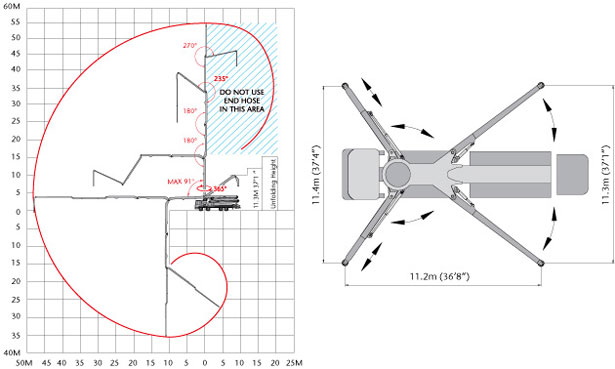

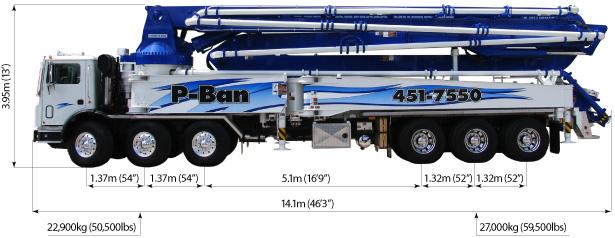

Dimensions & Diagrams

56 Meter 5-Section RZ Boom Pump - Concrete Pump

56 Meter 5-Section RZ Boom Pump - Concrete Pump

*Measurements and weights are subject to change

Alliance Concrete Pumps

Photo Gallery

Enter fullscreen

Boom Specifications

Vertical Reach 55.2 m (181'1)
Horizontal Reach 51.2 m (168')
Unfolding Height 11.3 m (37'1")
1st Section Length 11.3 m (37'1)
2nd Section Length 9.9 m (32'5")
3rd Section Length 9.8 m (32'2")
4th Section Length 10.4 m (34'1")
5th Section Length 9.8 m (32'2")
Front Spread 11.4 m (37'4")
Rear Spread 11.3 m (37'1)

Pump Specifications

Output: Rod Side 181 m3/h (237 yd3/h)
Output: Piston Side 122 m3/h (160 yd3/h)
Pressure: Rod Side 87 bar (1266 psi)
Pressure: Piston Side 130* bar (1880 psi)
Concrete Cylinder Diameter 230 mm (9")
Concrete Cylinder Type Hard chromed
Stroke Length 2100 mm (83")
S-tube Size 8" x 7"
Main Oil Pump Rexroth hydromatik Tandem A20VO 180
Hydraulic System Pressure 350 bar (5075 psi)
Lube System (Hopper) Automatic
Switching System Hydraulic
Hopper Capacity Easy Clean 600L (158G)
Number of Strokes/Min 34
Output Control Range 20(26)~181m3/h (237yd³/h)

General Specifications

Pipe Size(ID) 125 mm (5")
Elbow All standard size
Coupling Size 140 mm (5.5")
End Hose Length 4 m (13')
Boom Control Valve Proportional (by HAWE)
Proportional Radio Remote Control Standard
Wire Remote Control Standard
Vibrator Standard
Water Pump Rust proof hydraulic power. 20 bar (290 psi)
Water Tank 600 L (158 G)

Chassis Options

Mack Chassis Peterbilt Chassis
