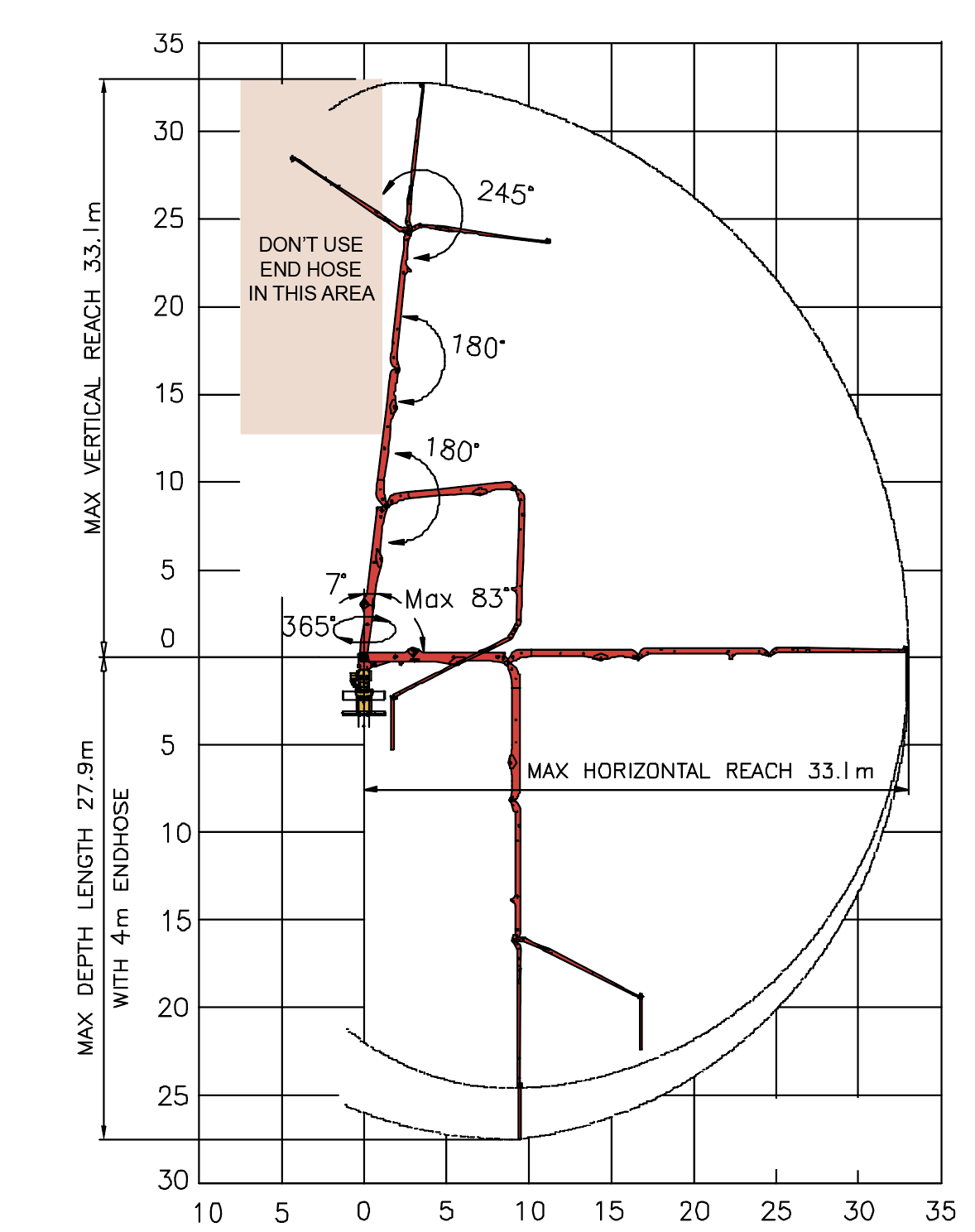

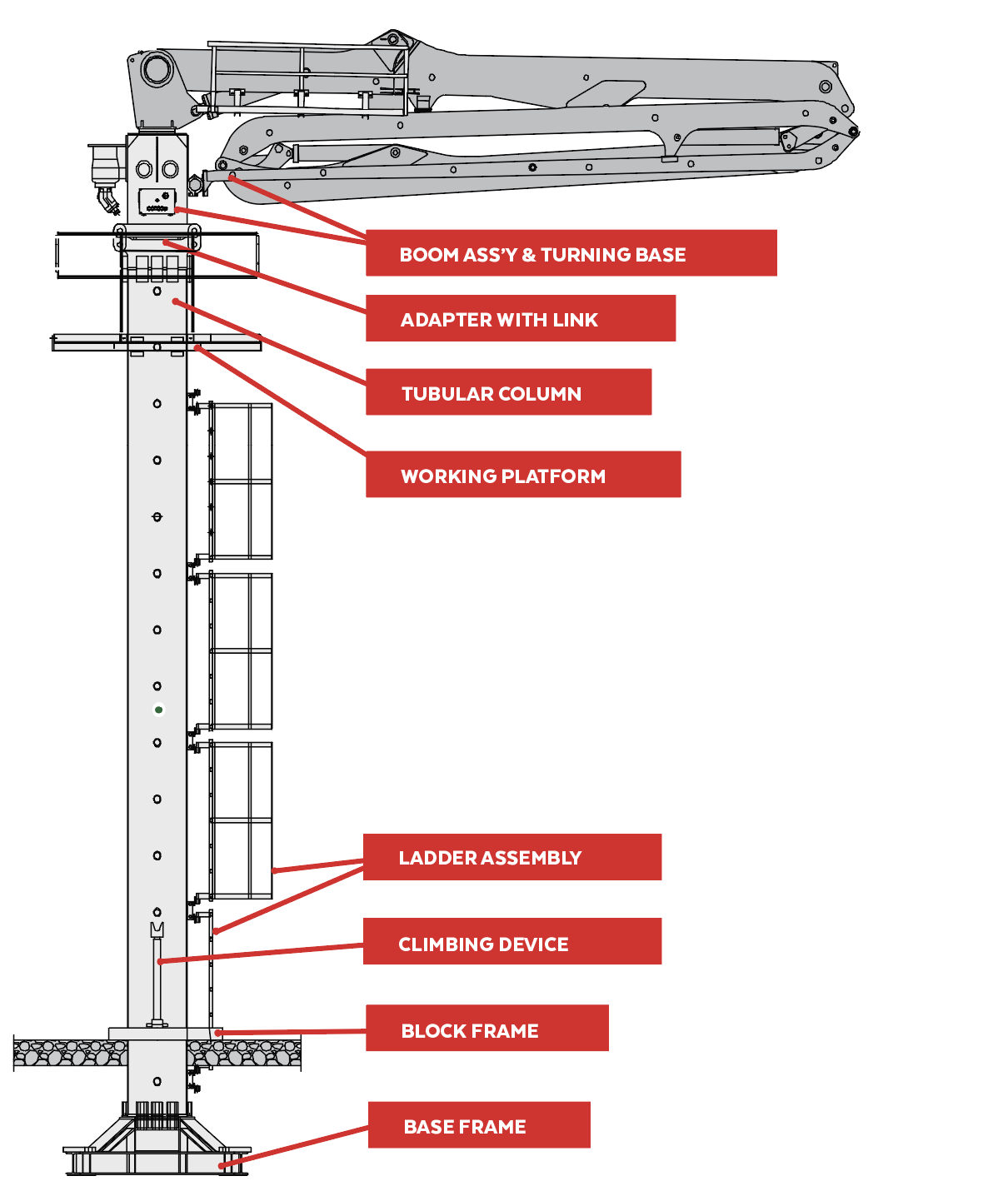

Boom Specifications

Boom Design R-Fold
Horizontal Reach 33.1 m (108'7")
Vertical Reach 33.1 m (108'7")
Reach Depth 27.9 m (91'6")
Boom Length
      1st Section 8.7 m (28'7")
      2nd Section 7.9 m (25"11)
      3rd Section 8.1 m (26'7")
      4th Section 8.4 m (27'7")
End Hose Length 4.0 m (13')
Boom Articulation
      1st Section -2°~83°
      2nd Section 180°
      3rd Section 180°
      4th Section 245°
Rotation 365°
Delivery Line DN 125mm(5")
Electric System AC460V/60HZ
Control Systems Wireless Remote
Electric Motor 15kW
