Standard Features

Our 32 Meter ZZ Boom is a specialist in working inside existing structures, due to its low unfolding height. It also works well under bridge decks, power-lines or any other situation where the operator has to deal with overhead obstructions. Of course, it also works well as a regular 32 Meter! Extremely versatile!



See the versatile 32-meter 5-section in action!

Hydraulic System with Manual Overrides
Our pumps feature an adaptive hydraulic system, giving you the confidence to get the job done, even in emergency situations. In the event of an electrical malfunction, the entire system can continue to pump in a manual mode.

Split Panel Electrical System
The electrical system is extremely user friendly. The smaller switch panel at the rear of the pump minimizes clutter and eliminates long wiring looms that deteriorate with time.

Optioned to Suit Your Needs
We have every option available to accommodate your specific needs. From different lighting kits and splash guards to custom paint, graphics and design, we will ensure your concrete pump is outfitted for the kinds of work you do.

View More Standard Features

S-Valve Manifold
Directs oil flow to either shift cylinder. Accumulator pressure is also utilized to control the main pump controllers. All electrical functions have manual over-rides.

Main Pump Cell Manifold
Directs oil to the pumping cylinders. All electrical functions have manual over-rides. The main pumping system is an open loop circuit, which reduces heat in the hydraulic system.

Boom Control Valve
The Hawe Controller Valve operates the boom functions and supplies oil for the outrigger circuit. This valve is fully proportional.

Main Pump
This is the main pump which delivers oil for the pumping cylinders. Accumulator pump, boom pump and accessory pumps are all Roxroth.

Hydraulic Oil Cooler
The fan is operated by a hydraulic motor for efficiency and maximum cooling and is controlled by a temperature sensor, with a manual over-ride.

Radio Remote Controls
Our standard package is equipped with Omnex Radio Controls, including two transmitters. The transmitter can also be utilized as a hard wire controller. The data cable plugs directly into the transmitter and into the receiver making the transmitter a proportional hard wire box. With the hard wire plugged into the transmitter, the battery is not necessary.

Hawe Load Holding Valve
Industry standard on boom cylinders to hold the boom in position.

Boom, Outriggers and Turret
Structures are all made of Oxelosund-Weldox structural steel.

Split Panel
Common relays are utilized along with ATO fuses. The smaller switch panel at the rear of the pump minimizes clutter and eliminates long wiring looms that deteriorate with time.

EasyClean 600L Hopper
Carbide Tungsten wear parts and 60mm agitator shafts.

Hopper Vibrator
Standard on all Boom Pumps and Truck-Mounted Line Pumps, our Hopper Vibrator helps you tackle those harsh mixes.

Hopper Auto Lube
Moving parts in the hopper assembly are lubricated by a Lincoln Auto Lube system.

Hide Standard Features

Alliance Concrete Pumps

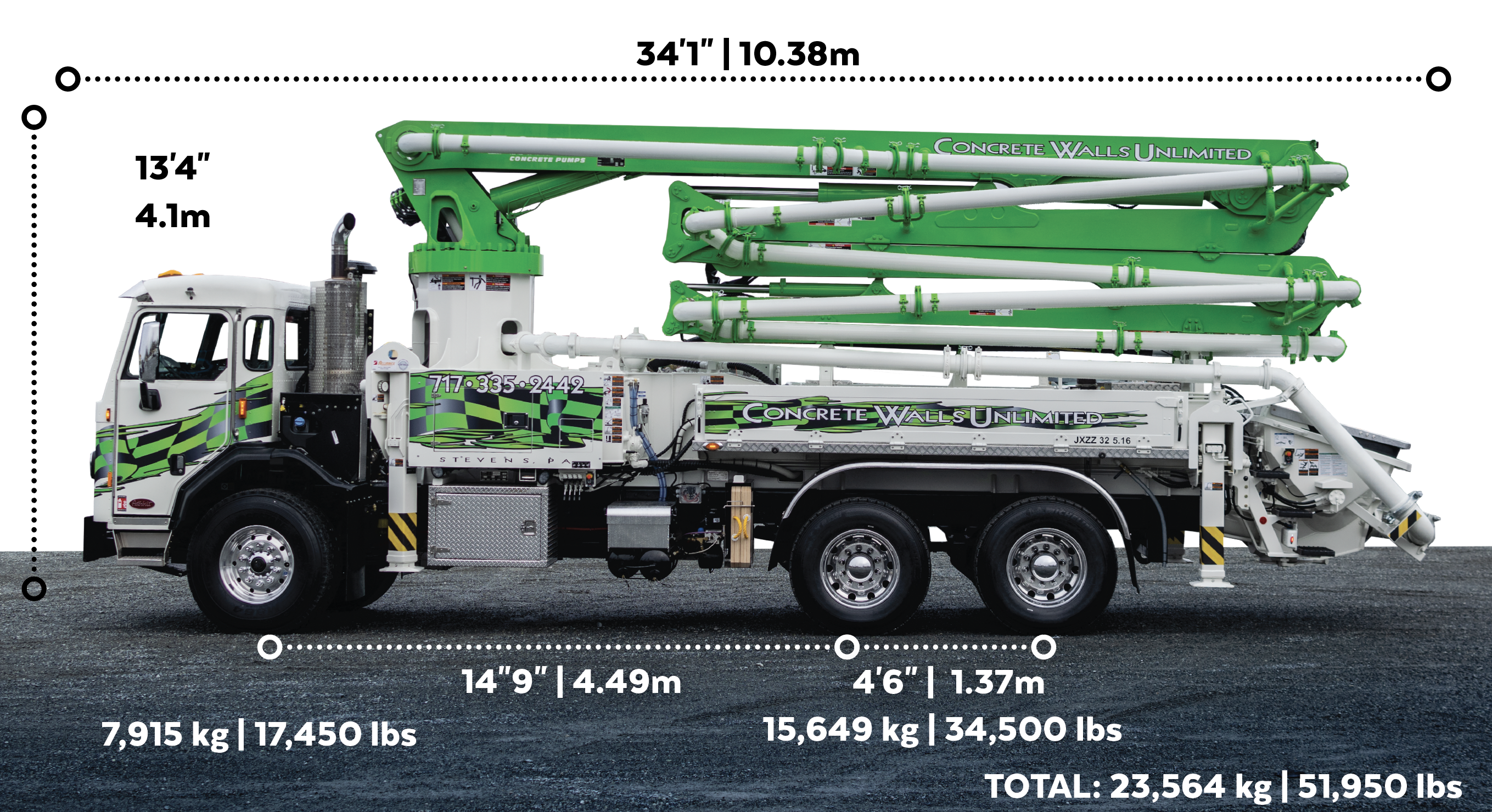

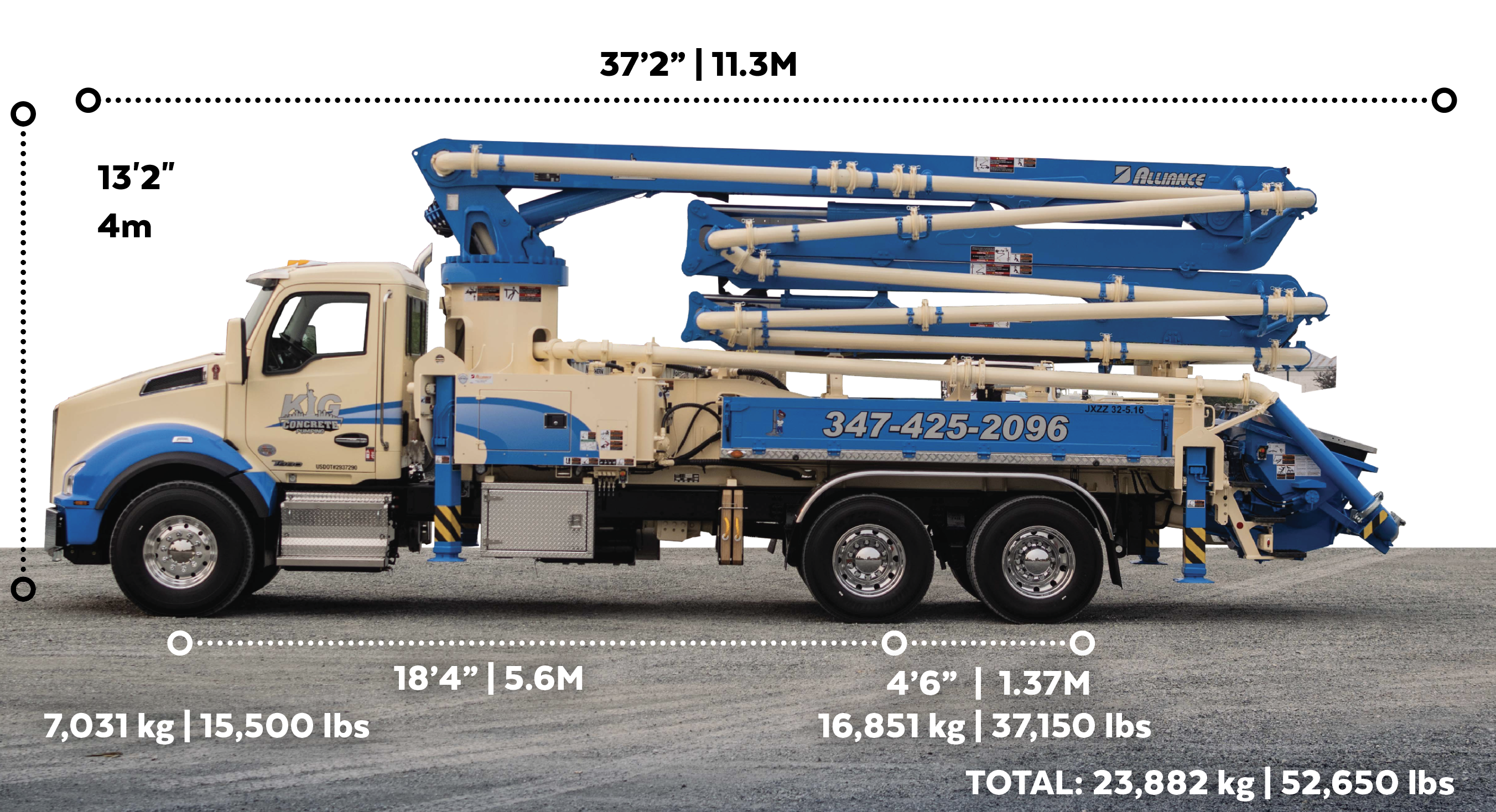

Dimensions & Diagrams









32 5 Section ZZ Boom Pump - Concrete Pump







Alliance Concrete Pumps

Photo Gallery

Enter fullscreen

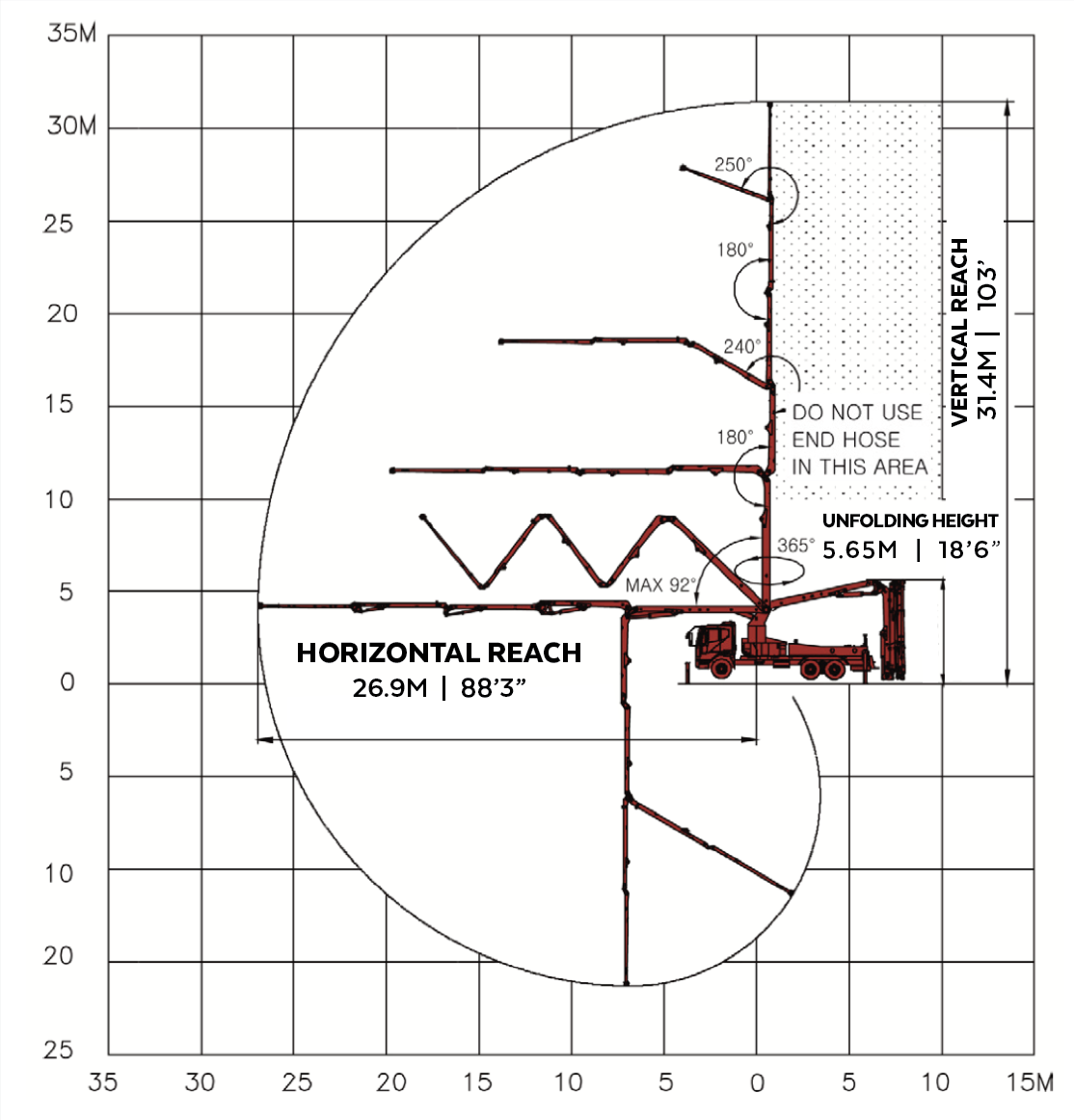

Boom Specifications

Vertical Reach 31.4 m (103')
Horizontal Reach 27.4 m (89'10")
Reach from Front
-Cabover
25.0 m (82')
Unfolding Height 5.97 m (19'7")
1st Section Length 7.3 m (23'11")
2nd Section Length 5.2 m (17'1")
3rd Section Length 5.0 m (16'5”)
4th Section Length 5.0 m (16'5”)
5th Section Length 4.9 m (16')

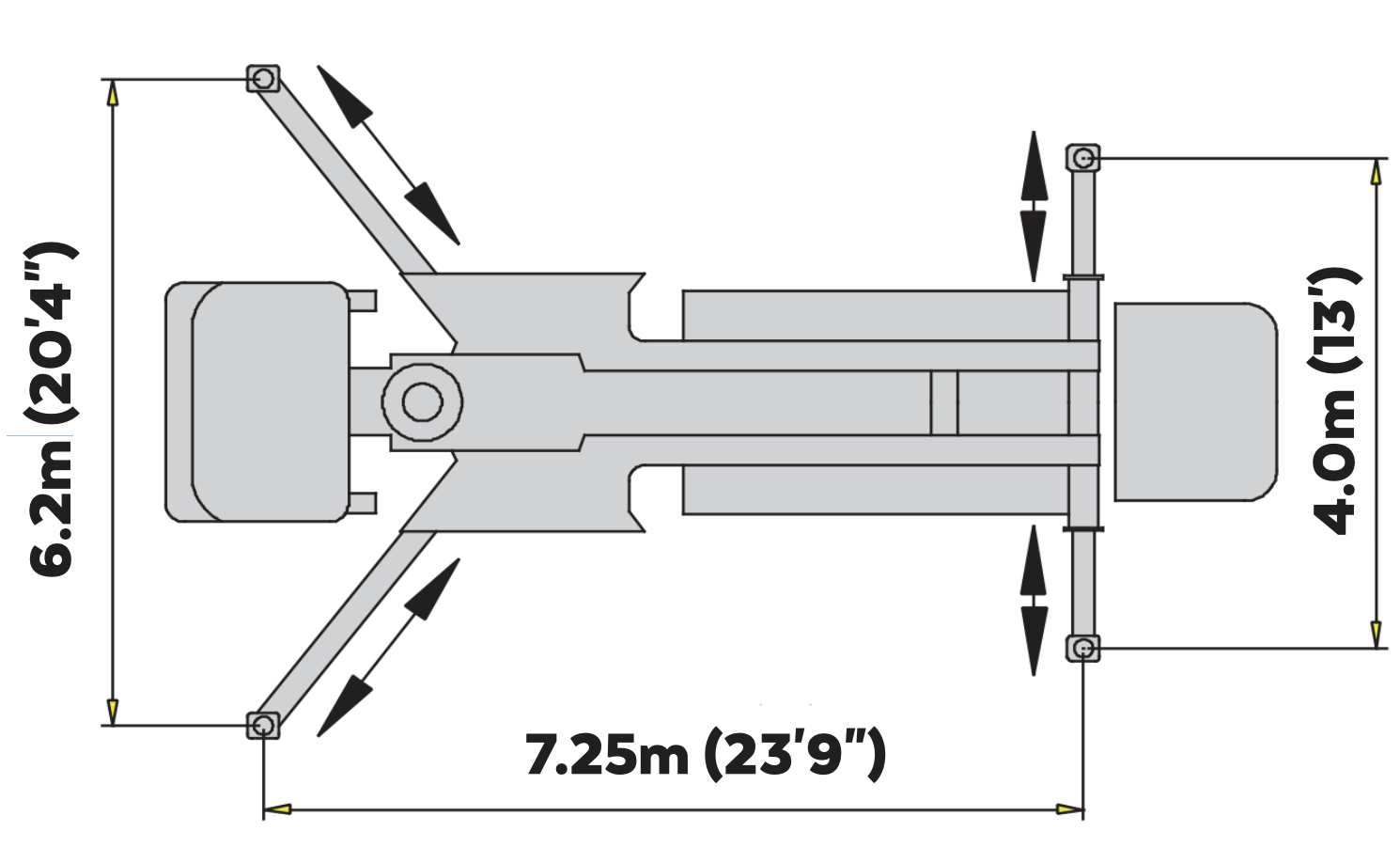

Front Spread 6.3 m (20'8")
Rear Spread 5.8 m (19')

Pump Specifications

FOR 16 CELL

(18 & 20 CELL AVAILABLE)

Output: Rod Side 164m³/h (215 yd³/h)
Output: Piston Side 102 m³/h (133 yd³/h)
Pressure: Rod Side 72 Bar (1044 psi)
Pressure: Piston Side 115* bar (1668 psi)
Concrete Cylinder Diameter 230 mm (9")
Concrete Cylinder Type Hard chromed
Stroke Length 2100 mm (83")
S-tube Size 8" x 7"
Main Oil Pump Rexroth hydromatic A11VSO260
Hydraulic System Pressure 350 bar (5076 psi)
Lube System (Hopper) Automatic
Switching System Hydraulic
Hopper Capacity Easy Clean 600L (158G)
Number of Strokes/Min 31
Output Control Range 10(13)~164m3/h (215yd3/h)

General Specifications

Pipe Size(ID) 125 mm (5")
Boom Control Valve Proportional (by HAWE)
Radio Remote  Dual Wireless Transmitter System
Vibrator Standard
Water Pump Hydraulic Power 20 bar (290 psi)
Water Tank 500L (132G)
Wear Parts Carbide
Popular Upgrades LED Boom-Light Kit
LED Outrigger-Lights
Heated Water Tank
Heated Hydraulic Tank
Air-Cuff
Twin Wall Pipe
18 or 20 cell Pump Kit
Big Mouth S-Tube



Chassis Options

Kenworth ChasisFreightliner Chassis Mack Chassis Peterbilt Chassis Mack Granite Chassis
